Application
Features
- New automatic production scheme, high strength industrial design structure, up to 10,000 meters of feeding and receiving system, fully realize unattended automatic production scheme, so that productivity is further improved.
- High strength frame — side large steel plate link, the stability of the whole machine is higher. It can realize ten thousand meters of paper shaft, reduce the frequency of media replacement, greatly save time and manpower.
- Weighted rubber roller — more uniform feeding paper, high precision output, and it is not easy to appear phenomenon of pressure roller printing and paper wrinkling.
- Feeding and receiving system — effectively solve the step deviation and speed change caused by different material diameters and ensure that the materials are collected neatly,
- Front and the bottom are drying at the same time, which improves the drying efficiency and saves a lot of time.
Details

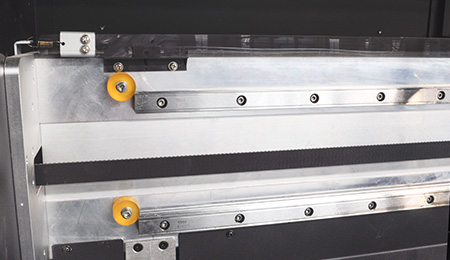

Dual Guide Rails
Equipped with THK silent dual guide rails, ensuring smoother vertical high-speed operation and higher printing precision.

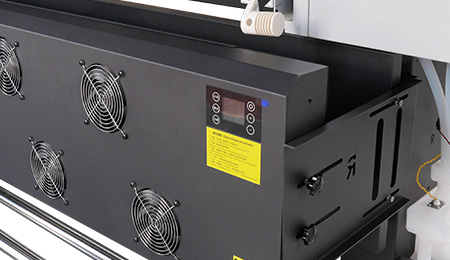

High-Power Double Dryer
Equipped with dual dryers to speed up ink drying, ensuring smooth paper feeding and collection for high-speed printing.

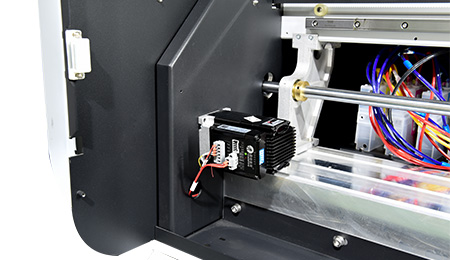

Linear Motor
The use of high-quality linear motors greatly increases the printing speed and improves the stability of printing to ensure high-quality continuous output.

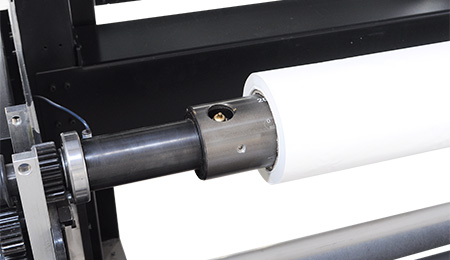

Air Expanding Shaft?
The front and rear rewinding and unwinding devices are equipped with air expansion shafts and more stable conveying and feeding devices.
Specifications
| Product Model | LC-1916 |
| Printhe ad Type | Epson i3200-A1 |
| Number of Printhead | 16 |
| Printhe ad Height | 2-3mm |
| Printhe ad Cleaning | Fully automatic cleaning with anti-clogging,flash spraying,and automatic moisturizing functions |
| Ink Type | Dye-sublimation ink |
| Ink Color | Fourcolors(C/M/Y/K) |
| Ink Cartridge Capacity | 20000mlper color |
| Ink Supply Method | Siphonink Supply |
| Printing Width | 1900mm |
| Media | Heat transfer paper |
| Maximum Roll Weight | Equivalent to 10,000 Kilometers of Paper Weight |
| Take-up Device | Rear Feeding and Winding /Ultrasonic Sensor /Variable Frequency Motor |
| Frame Structure | Heavy-Duty Wall Panels |
| External Drying Configuration | Dualinfrared heating with external drying fan |
| Operation Language | Chinese/English |
| Computer System | Win11/Win10 |
| Operating Environment | Temperature range 18*C-25*C; Humidity range 35%-65% Rh |
| Printing Interface | USB |
| RIP Software | Maintop/Photoprint/Wasatch |
| Power Parameters | AC-220V, 50Hz/60Hz |
| Power(W) | maximum power 12000W |
| Machine Dimensions | 3800x1070x1750mm(LxWxH) |
| Paper Rewinder Dimensions | 2500x1580x1140mm(LxWxH) |
Optional Items
Get a Quote Now
Related Video

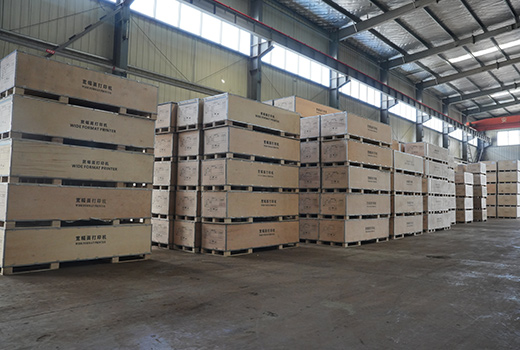

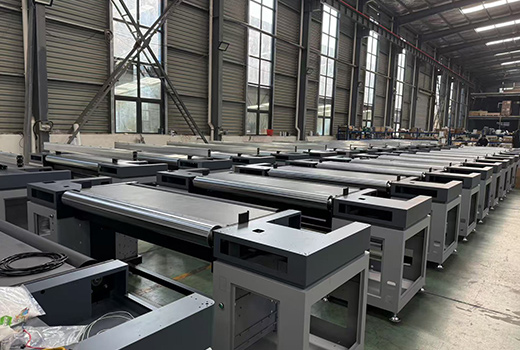

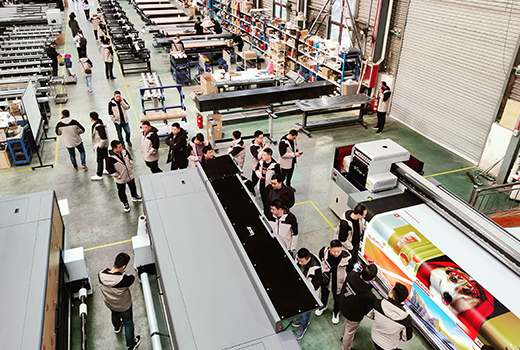

Factory Strength
A Powerful Printer Manufacturer From China Since 2003
20+ Years Printer Factory
Technical support
Support methods usually include telephone support, online customer service, remote support, etc.

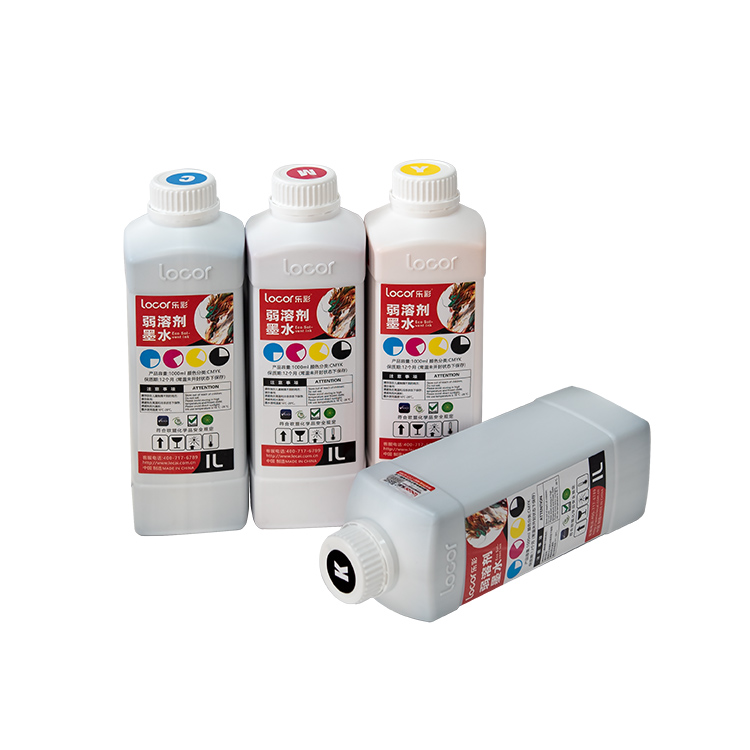

Printing supplies
